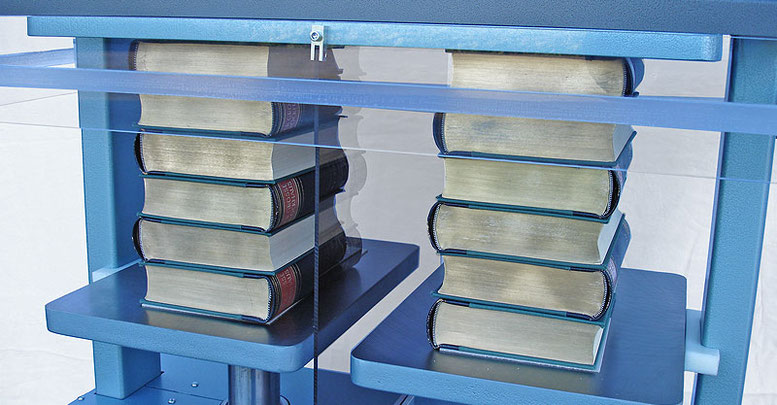

The hydraulic Twin Presses are suitable for pressing of books, brochures, posters, pictures, etc. The pressing operation of the pressure plates is controlled by hand levers. As soon as the desired pressure is reached, the hydraulic pump will stop automatically, and the pressure is kept on constant level. The pressure plates can be operated either single or together, and they can be stopped in any position.

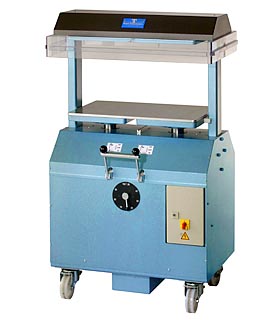

Twin Press model ZP 39
|
for the pressing of books, brochures, posters, pictures, etc.
electrical equipment A.C. motor |
400 volts, 3 ph., 50 cycles, 1,1 kW |
max. pressure | 5000 kg |
pressure | infinitely variable |
machine | mobile |
with 2 pressure plates - size | 440 x 320 mm |
space requirement | 85 x 70 x 150 cm |
weight | net 420 kg |
Twin Press model ZP-Combi
|
for the pressing of books, brochures, posters, pictures, etc.
electrical equipment A.C. motor |
400 volts, 3 ph., 50 cycles, 1,1 kW |
max. pressure | 5000 kg |
pressure | infinitely variable |
machine | mobile |
with 2 pressure plates - size or with 1 pressure plate - size |
440 x 320 mm 700 x 440 mm |
space requirement | 85 x 70 x 150 cm |
weight | net 420 kg |
